Checking the Finish

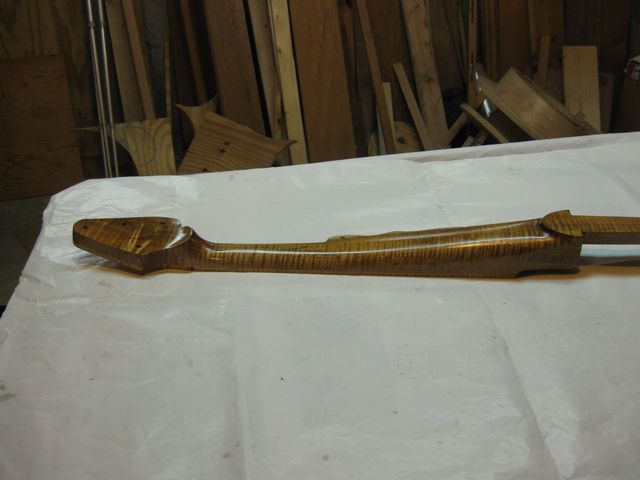

The last coat of oil should be dry on the banjo, so I went down to check it out. Here is the neck. It actually looks kind of nice from a distance.

Neck

The Neck Doesn't Look Too Bad

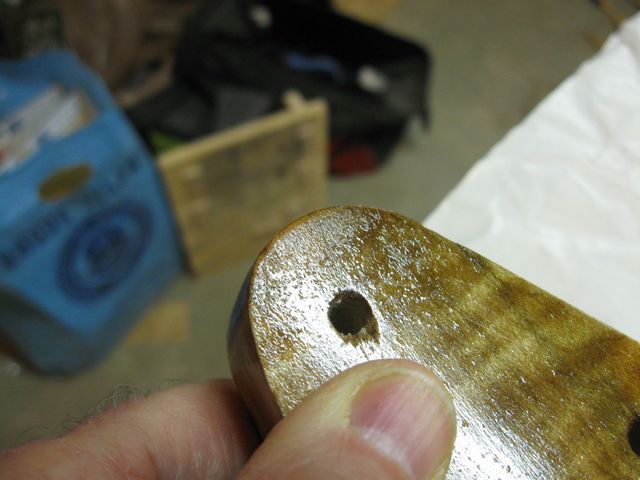

The tip end of the peghead now has finish on it (Yay!). It is still rough from all that abuse, but it has finish on it.

Finish

The Rough Spot Now Has Finish On It

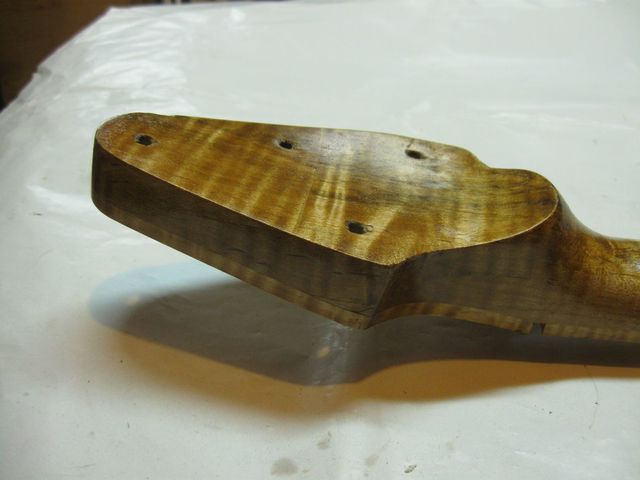

The peghead actually looks pretty good if I don't look at it too closely.

Peghead

Not Too Bad After All

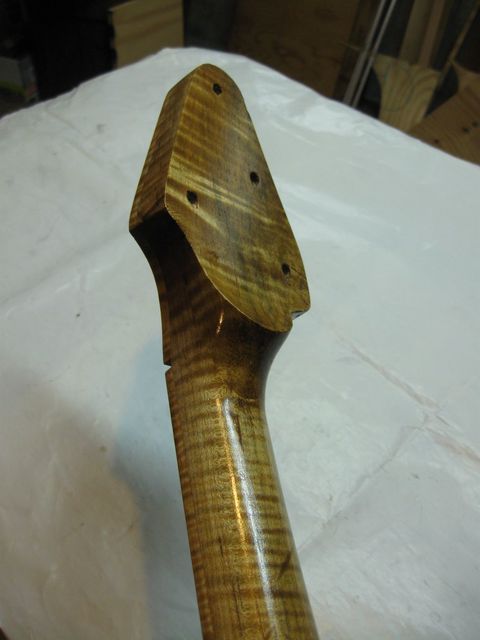

I really like the look of the handstop on this neck.

Handstop

The Handstop Is Nicely Formed

3-D

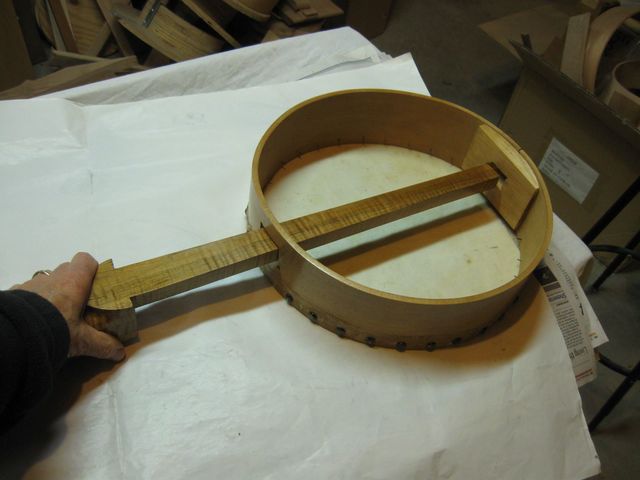

Just for grins I put the banjo back together to see what it looks like.

Join

Slide the Dowel Through the Holes in the Hoop

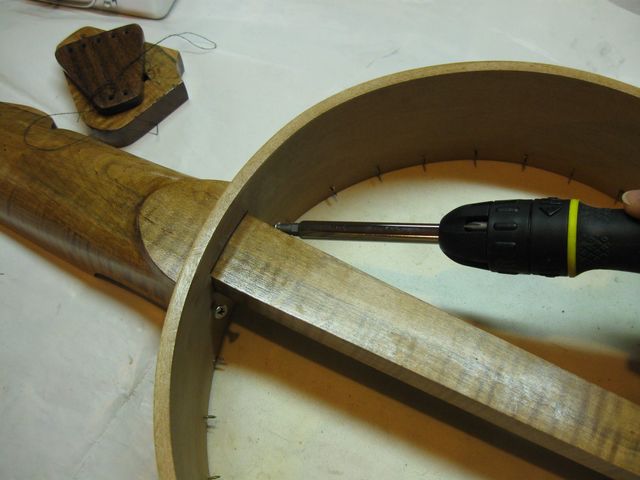

Screw the neck to the hoop with the two wood screws.

Screw

Screw The Neck Down

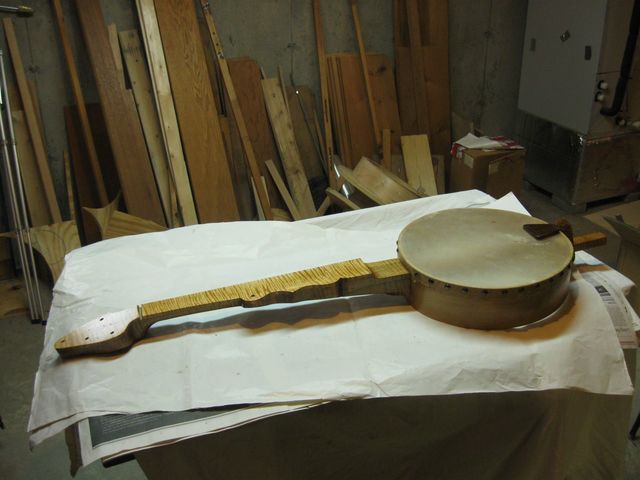

There it is, with the tailpiece positioned where it will be after the banjo has been strung.

Complete

It is Looking Almost Done

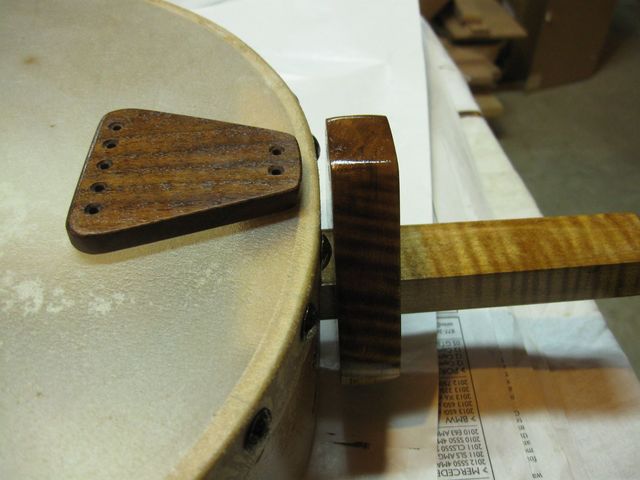

Taking a close look at the tailpiece, you can see that it is very close to the hoop, but it does not touch the hoop. So all of the string tension will be transferred to the dowel stick and not to the side of the hoop.

Tailpiece

The Tailpiece Does Not Touch the Hoop

I learned some lessons while I was doing this finish job. I hope I can remember them next time I do this. The finish came out OK but not spectacular. It is missing in places and is rough in others. I think that I got sawdust and/or steel wood scraps in the finish. I also ended up with bad places from the way I put it down to dry. It is somewhat uneven in places, and there are runs in others.

Lessons learned:

And you know what.... I never did get around to making those peg blanks.
