Results of the 40 Minute Steam Bend

Yesterday I bent a board by steaming it 20 minutes on each side instead of 15 minutes. I took a look at it today to see how I did. It looks pretty good. It did not split, and it is round without any signs of egginess.

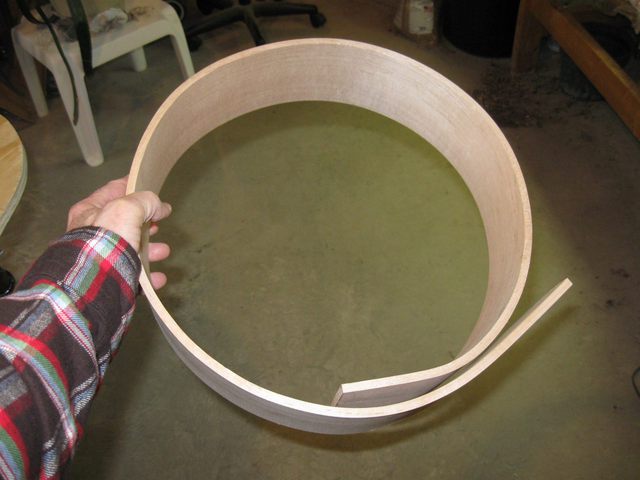

The Hoop

The Hoop is Round

This bend went better than the others did, so I am officially amending my procedures to steam the wood for a minimum of 20 minutes on each side. It is the correct size, coming in at 13" across.

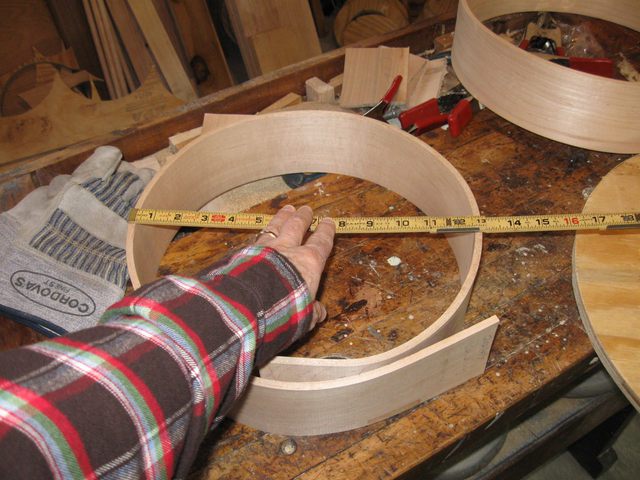

Thirteen

The Hoop is 13" Across

Actually, it is a tiny bit less than 13". Looks like about 12 7/8". This is good because that means that I will spring it apart slightly to make it 13" and that will tend to hold the two ends together, whereas if it were slightly larger than 13" I would have to squeeze the ends together, and they would want to pull apart. I think that the hoop wrapped a bit tighter around the form because I had steamed it longer.

Less

The Hoop is Actually 12 7/8" Across

That one is going to become a hoop for sure. I put it aside for now so I can go work on the one that I started a week ago.

I found the old hoop that I had started building earlier, on April 1st..... appropriately enough. That was started using the board that I bent on March 24, my first successful bend using maple. I clamped it in the vise and started cleaning up the ends with the block plane.

Old

The Old Hoop I Started Earlier

The block plane makes quick work of the glue line on the end of the board. I also made the ends square in all directions to get a better seam where the two ends come together at the heel block.

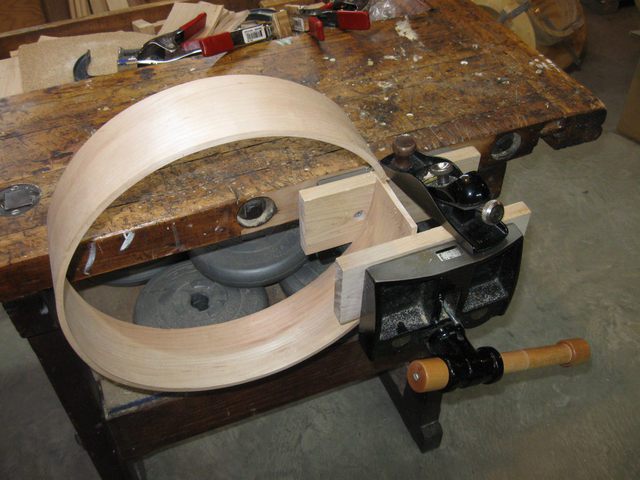

Plane

The Plane Cleans Up the Ends Quickly

That is all I did today. Slow day.





To Home

Click Logo For DEB Home


Original post date April 8, 2012
